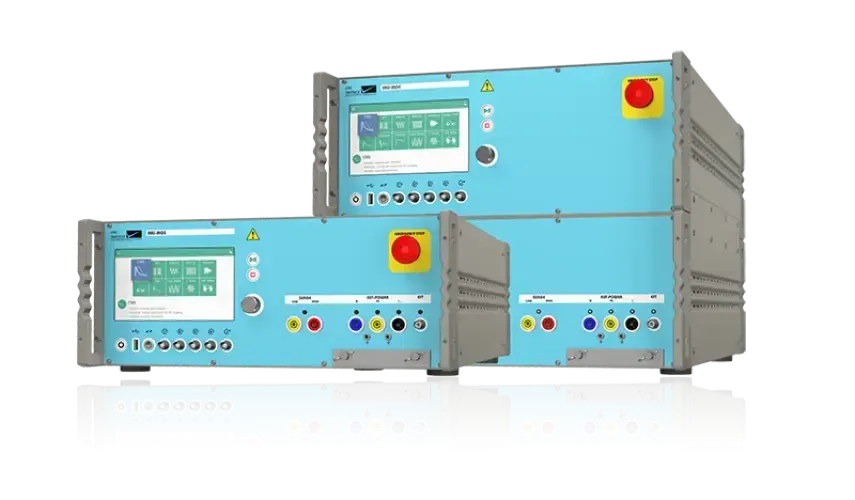

IMU MGS / MGE Series

8kV EFT / Burst & Surge Generator With Integrated 1-phase CDN

Compact multifunction test system, modular architecture extendable on-site, emergency stop, warning lamp on generator, bi-directional connections for integration into a PLC system. EFT/Burst, Surge, Ringwave, 10/700us Telecom, Common Mode, AC/DC Dips, Magnetic field. Optional ESD.

Includes Test Standards:

Surge / CWG Generator IEC 61000-4-5

EFT / Burst Generator IEC 61000-4-4

DIPS AC/DC IEC 61000-4-11 / IEC 61000-4-29 / IEC 61000-4-34

Ring Wave Generator IEC 61000-4-12

Telecom Impulse IEC 61000-4-5

Common Mode IEC 61000-4-16

Differential Mode IEC 61000-4-19

ESD (Static Discharge) IEC 61000-4-2

Modular test generator with colour touch screen and intuitive software. An integrated help with graphics guide the user through fast and efficient setup and operation. Each generator can be extended on site with up to 10 test types. Configurations for IEC / EN and ANSI test requirements can include Surge (CWG), 100 kHz Ringwave, 10/700 and EFT all up to 8kV. DIPS/Interrupts, variations, Common Mode, Differential Mode and ESD further enhance the generator creating a compact test solution. A test library of basic and generic requirements is included as standard. The integrated web server enables access to test report and setup files from any internet browser.

Your Generator, your choice
