Avionic Equipment Testing

Avionic equipment testing is based around the RTCA DO-160 and EUROCAE ED-14 requirements. Within these specifications, EMC PARTNER are recognised as an established supplier of testing equipment for indirect lightning, voltage spike and ESD. Active participation in the Society of Aerospace Engineers (SAE) and Eurocae standard committees indicates our commitment to supporting the indirect lightning market and customers worldwide.

Application Standards

• RTCA DO-160 / EUROCAE ED-14 Section 22, 17, 19, 25
• SAE ARP 5416
• RTCA DO-380

Test Types

• Indirect Lightning
• Voltage and Current Impulses
• Waveform 1, 2, 3, 4, 5A, 5B, 6
• PIN Injection
• Cable Bundle
• Multiple Stroke
• Multiple Burst
• 2/10µs Voltage Spike
• Induced Signal Susceptibility
• ESD

Documents

• 4 Page Flyer - Lightning-Induced Transient Susceptibility Testing

• Infosheet - AVI-LV3

• Brochure - Indirect Lightning Testing - AVI LV3

• Brochure - Indirect Lightning Testing - AVI LV5

• Brochure - Indirect Lightning Testing - MIG series

Selected Products

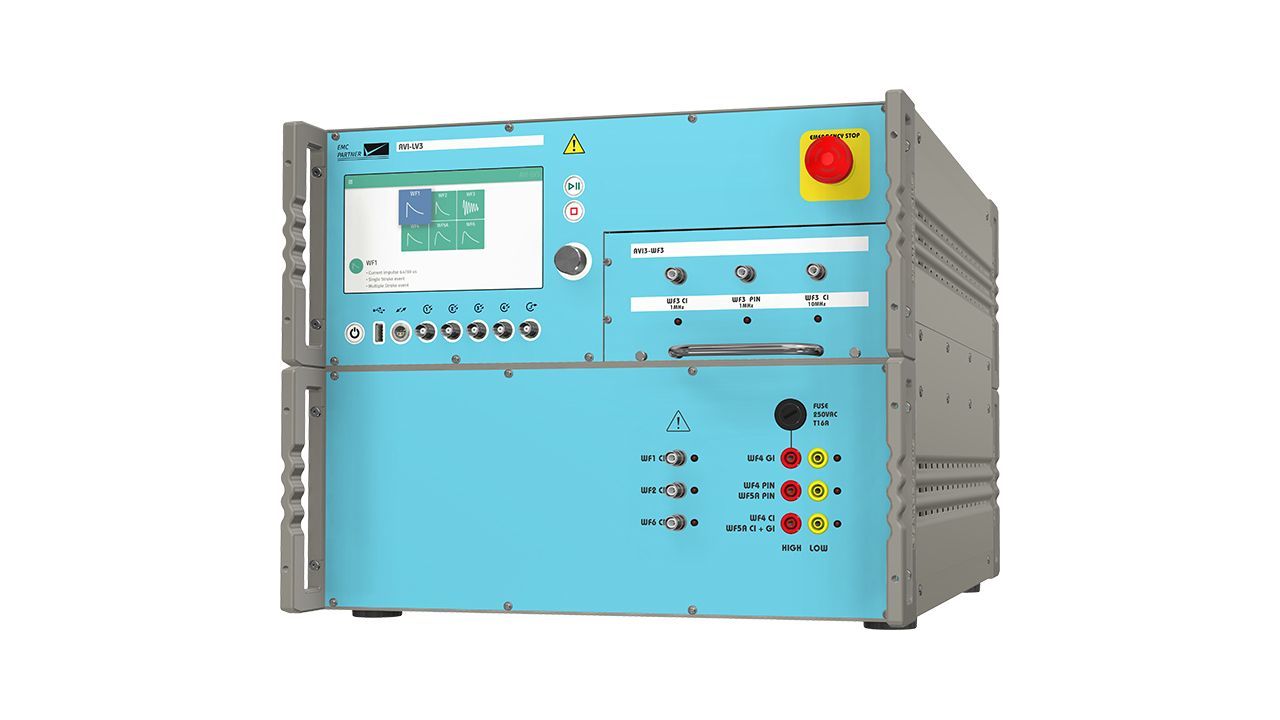

AVI-LV3

Compact indirect lightning impulse generator

Indirect lightning impulses for PIN injection, cable induction and ground injection. Single stroke, multiple stroke and multiple burst events. DO-160 & EUROCAE ED 14 level 3 and MIL-STD-461 internal level events.

AVI-LV5

Pin Injection & Cable Bundle Generator for Indirect Lightning Effects Testing

AVI-LV5 is a powerful system that includes all waveforms for RTCA DO-160: Section 22 and MIL-STD-461G: CS117 testing. All event types are available for PIN Injection and Cable Bundle tests.

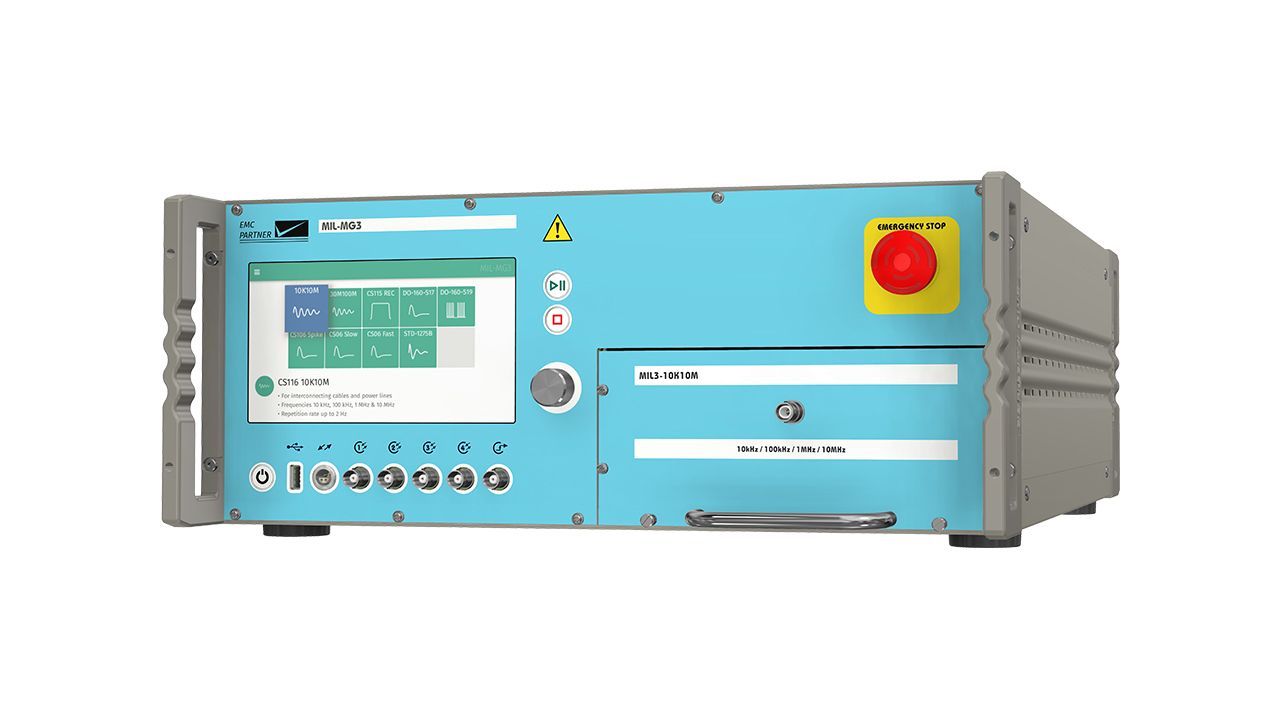

MIL-MG3

Modular impulse test system

Portable multifunction impulse test generator with plug-ins for MIL-STD and DO-160 applications. Test capability is easily extended with the seven plug-in modules. Couplers and calibration accessories complete the solution.

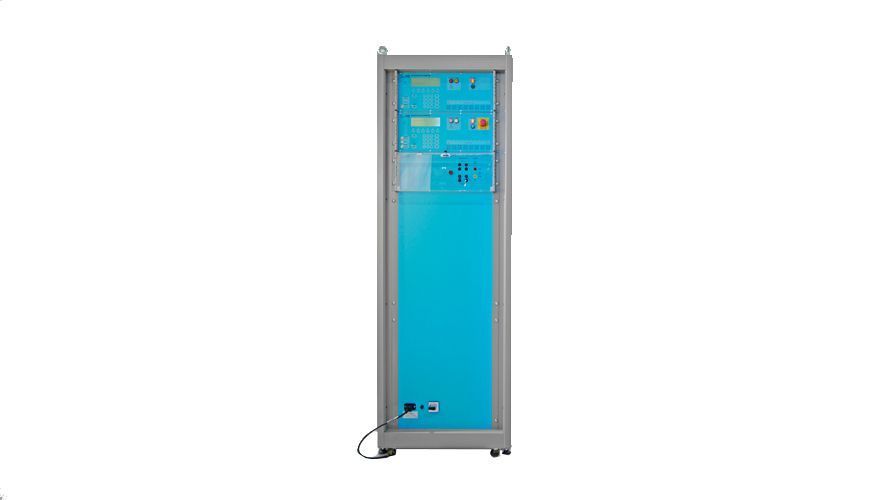

MIG0600MS

Multiple Stroke Indirect lightning impulse generator

Combined solution for PIN injection, cable induction and ground injection tests. Single stroke and multiple stroke events according to standards or user programmable.

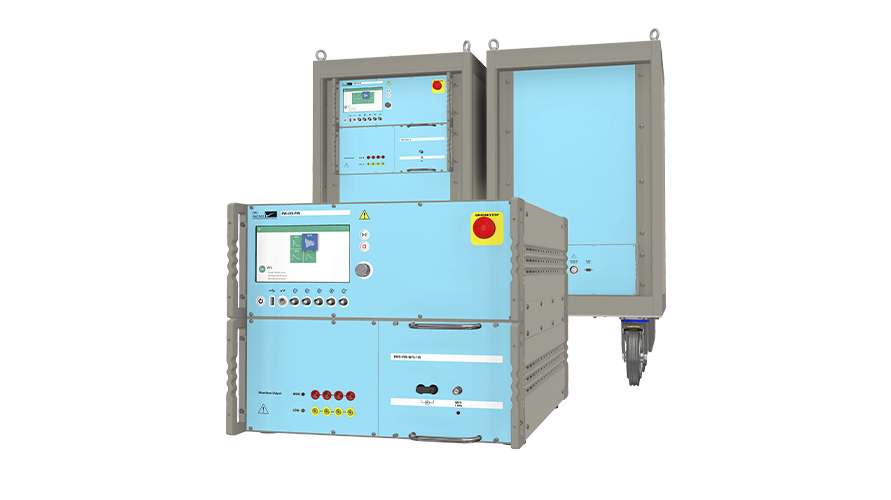

AVI-LV5

Pin Injection & Cable Bundle Generator for Indirect Lightning Effects Testing

AVI-LV5 is a powerful system that includes all waveforms for RTCA DO-160: Section 22 and MIL-STD-461G: CS117 testing. All event types are available for PIN Injection and Cable Bundle tests.

ESDEX

Latest ESD Generators up to 30kV

Available in 8, 16, and 30 kV versions and support a broad range of interchangeable RC networks to ensure full compliance with the latest international standards, including IEC 61000-4-2, ISO 10605, RTCA DO-160, various MIL and Semiconductor standards.
